DC Gearmotor with Parallel Shaft. 1/4HP, 50 RPM, Gear Ratio 50 to 1, Overhung Load 315 Pounds, 250 Lb. In. Full Load Torque, Totally-Enclosed Non-Ventilated (TENV) Enclosure, 34 Frame, 90V, Name Plate Amps 2.3.Gearmotor is totally enclosed, permanent magnet DC, performance matched for continuous duty service. Gearbox has rugged aluminum die cast housing, for maximum gear and bearing support and precision machined gearing, hardened for maximum load capability. All gearing designed and rated to AGMA Class 9 standards and to withstand momentary shock overload of 200%. Features oversized output bearings for greater overhung load capacity and longer life. High-carbon alloy output shaft provides maximum strength and rigidity. All needlebearing journals are precision-ground after heat treating,to provide maximum finish and fit. Heavy-duty industrial oil seals help keep lubricant in and dirt out. Gears and bearings are splash lubricated with permanent, heavy duty gear oil. Conduit box not included with motor. These gearmotors are designed for mounting at any angle, but shaft up with motor below should be avoided to prevent leakage of lubricant into the motor should the motor's shaft seal fail. Overhung load capacities shown are at center of outputshaft. The motor's stall torque exceeds recommended full load torques. A current limiting device such as an SCR control should be used to prevent damage. Model PE350 gearmotors have the same mounting dimensions as Bodine's "E" box and many Baldor gearmotors. Click here to see our full selection of <a href="http://www.globalindustrial.com/c/motors/motors-controls?ref=t/MT/cat" title="Global has a wide selection of Motor Controls and Drives to suit your application" style="font-weight:bold;">Motor Controls and Drives</a>. <table width='100%' style='border: 4px solid #e9e9e9; padding:4px;'><tr><td>Compatibility</td></tr><tr><td class='body_copy_med' style='border: 1px solid #e9e9e9;' padding:4px;'>Baldor: GPP7460</td></tr><tr><td class='body_copy_med' style='border: 1px solid #e9e9e9;' padding:4px;'>Bison: 011-348-7034</td></tr><tr><td class='body_copy_med' style='border: 1px solid #e9e9e9;' padding:4px;'>Minarik: 507-01-361(Leeson base mounting holes not 'Drop-in' replacement ) </td></tr></table>

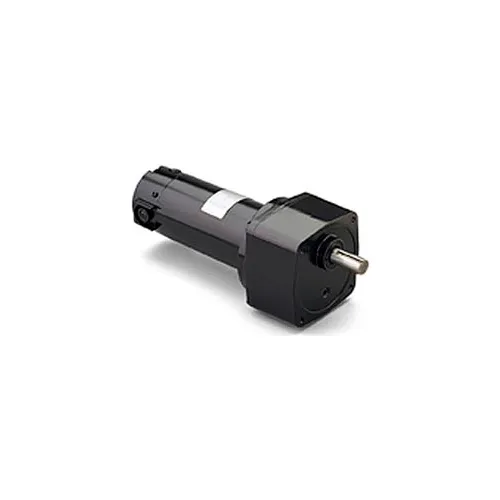

Leeson M1135109.00, 1/4 HP, 50 RPM, 90VDC, TENV, PE350, 50:1 Ratio, 250 In-Lbs
